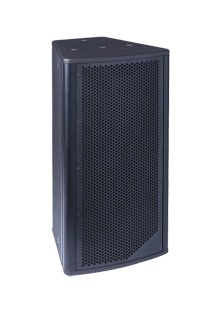

CM9

CM9 is a unique medium throw installation speaker with very high SPL in an ultra compact design with constant coverage. Featuring a rotatable horn and multiple flying points - four of which are fully adjustable, the CM9 is an extremely versatile installation speaker series. The distinct new CM9 is ideal for small to medium-sized applications in combination with a subwoofer or as a delay speaker.





Specifications

Category
Power rating IEC268
Sensitivity 1w/1m
Dispersion angle avg
Drivers
Nominal Impedance
Frequency Response
Recommended amplifier


Weight & Measurement

Dimensions (HxWxD)
Net weight
Finish
Grille
Input connector


Order Information

CM9 black



2-way full range speaker
500W
96 dB
H 80° V 50°
2 x 8" woofer, 1" compression dirver

50Hz ~ 20kHz
1000W, 4Ω




648 x 349 x 337 mm
22.8 kg(50.3 lbs)
Black SafeCoat coating
2 mm steel with foam backing
2 x Speakon NL4




P/N 95001020
