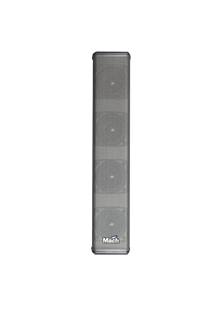

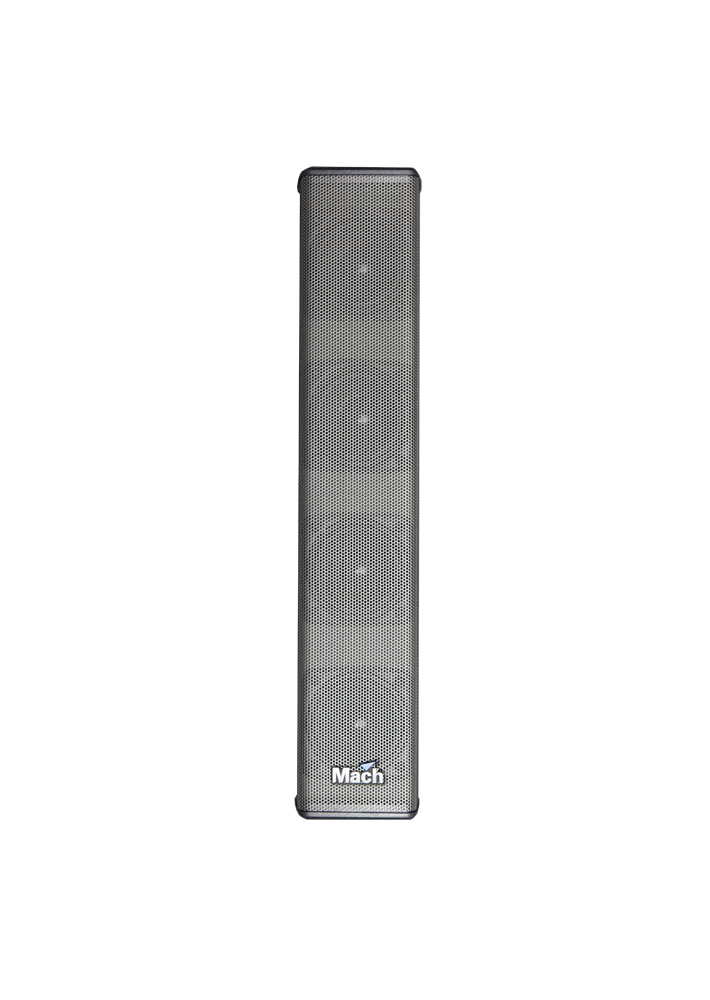

Shine 420

Shine 420 compact structure column speaker, through the auxiliary acoustic phase design, it phase to minimize interference between each units.





Specifications

Category
Power rating IEC268
Frequency response
Sensitivity 1w/1m
Max. SPL peak
Drivers
Dispersion angle avg
Nominal Impedance

Weight & Measurement

Dimensions (HxWxD)
Net weight
Finish
Input connector



Column speaker unit
120W
100Hz ~ 23KHz
92 dB
123 dB
4 x 2" full range driver
H 90° V 150°
8Ω



324 x 64 x 86 mm
1.4 kg （3 lbs）
Black SafeCoat coating
Speakon Pin 1+, 1-

Order Information :
Shine 420 black

Order
P/N 95301010



Accessories

SS02
Pole Mount Adapter

P/N 98005040

WM01
Wall Mounting Bracket

P/N 98005010

SS01
Adjustable height speaker pole
P/N 98005030

SS04
Speaker Pole 380mm

P/N 98005080

SS03
Deluxe speaker pole 380mm
P/N 98005070
